01
58 checksElectrical & control
Wiring and terminals · protection settings · sensors · alarms · commanded actions
SCI QUALITY ASSURANCE
Quality built in.
Risk designed out.
From imported critical components and preventive refrigeration engineering to 223 documented checks, 1,000-cycle validation and 18+ years in the field—SCI makes quality visible at every stage.
Source-controlled components · Three verification layers · Traceable test evidence
FACTORY QUALITY SYSTEMDOCUMENTED
223documented inspection checkpoints before delivery
223
documented inspection points
12
refrigeration techniques
1,000+
continuous shock cycles
18+
years field operation
SELECTED CORE COMPONENTS
Recognized brands.
Selected for your chamber.
Component selection follows the chamber range, refrigeration design, control needs and regional supply.
USA
Copeland
Compressor option
Germany
BITZER
Compressor option
Germany
GEA BOCK
Compressor option
Japan
Panasonic
PLC / control option
Sweden
SWEP
Plate heat exchanger
USA
Sporlan
Solenoid-valve option
Finland
Vaisala
Humidity-sensor option
France
Schneider Electric
Circuit-breaker option
Configuration note: Brands shown are sourcing options. The approved component schedule defines the final configuration.
REAL INSTALLED DETAILS
Quality you can inspect,
not just specify.
These are real details inside an SCI refrigeration system. Component choice matters—but pipe routing, insulation, sensing, access and final assembly determine how the complete system performs over time.
01Clean joints and accessible control hardware

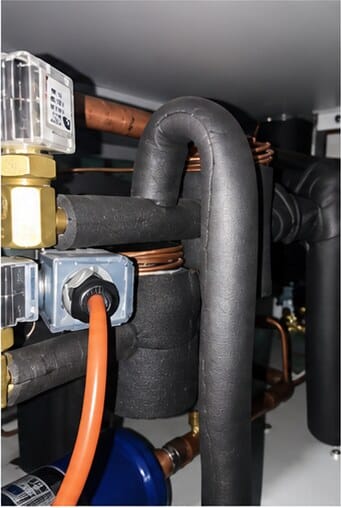

02Insulated routing with secured connections

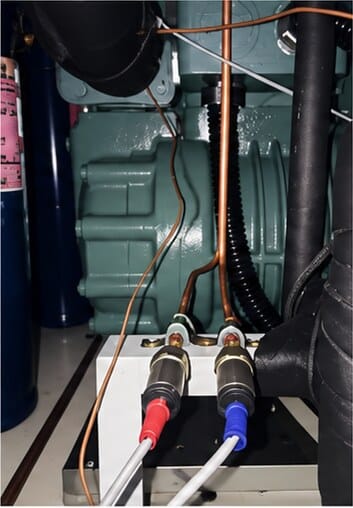

03Clearly arranged pressure and service points

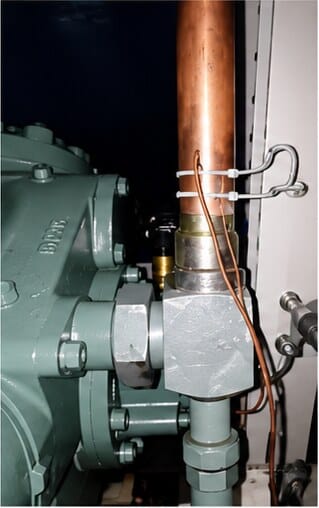

04Sensor placement visible for inspection

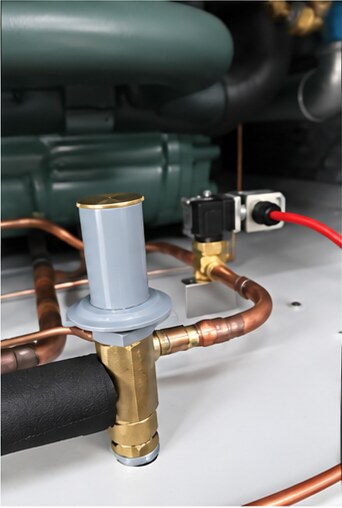

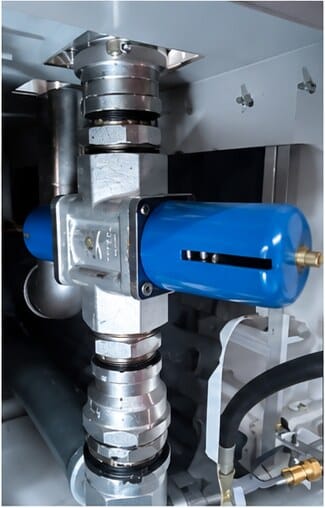

05Installed actuator and valve assembly
THE 223-POINT FACTORY CHECK
Every critical system
has its own checklist.
The four-sheet inspection workbook follows each machine from assembly to shipment. It verifies visible finish and hidden engineering details, with A/B/C severity classes and production/quality ownership recorded item by item.
02
55 checksStructure & finish
Outer cabinet · chamber interior · doors and seals · alignment · assembly finish
03
48 checksRefrigeration
Component models · pipework · brazing · pressure integrity · insulation and oil return
04
62 checksCommissioning
Programs · safety logic · performance data · protocol compliance · delivery documents
What gets verified
Terminal crimping and exposed copper · compressor mounting torque · pipe routing and brazing · door sealing and alignment · sensor placement · alarm logic · temperature and humidity performance · manuals, certificates and signed reports.
THREE QUALITY GATES
A defect should be found
before it disappears inside.
Quality responsibility travels through production. Each stage checks its own work and verifies the previous process before the machine moves forward.
Self-inspection
The technician checks completed work against the process requirements.
Next-process verification
The receiving team checks the previous stage before covering or connecting it.
Final quality inspection
Quality verifies safety, configuration, function, performance and documentation.
PREVENTIVE ENGINEERING
Inspection finds problems.
Engineering prevents them.
Twelve refrigeration techniques manage pressure, oil return, compressor protection and changing operating conditions—the invisible details that support stable long-term operation.
SCI / PREVENTIVE ENGINEERINGREFRIGERATION ARCHITECTURE · 01—12
REAL INTERNAL SYSTEMCONTROLLED AT THE SOURCE
COORDINATED TECHNIQUES
Designed into pressure, flow and protection before commissioning.
ENGINEERING ARCHITECTURE
Twelve controls.
One stable system.
01
CALCULATE
System design
Capacity is matched before the machine is built.- Precision refrigeration calculation
- Multi-condition parameter calculation
- Air-conditioning refrigeration process
02
STABILIZE
Pressure management
Pressure stays inside a controlled operating envelope.- Pump-down control
- Suction-pressure compensation
- Adaptive condensing pressure
- Suction / discharge monitoring
03
CIRCULATE
Flow & oil return
Refrigerant and oil keep moving as the load changes.- Cold bypass & injection
- Valve co-control
- Oil-return circuit design
04
PROTECT
Compressor protection
Risk conditions are contained before damage compounds.- Compressor overload protection
- Oil-pressure protection
SELECTED CORE COMPONENTSCopeland · USABITZER · GermanyBOCK · GermanyPanasonic · JapanSWEP · SwedenSporlan · USAVaisala · FinlandSchneider · France
LONG-DURATION VALIDATION
One thousand cycles.
No shortcut to proof.
The supplied controller record documents continuous thermal-shock cycling. Repeated transitions challenge control logic, valves, compressors, pipework and chamber construction together—far beyond a short demonstration run.
FIELD LONGEVITY
The final quality metric
is years in service.
Three customer records show equipment delivered between 2008 and 2011 continuing in service after 15–18+ years—evidence measured in operating time, not a launch-day claim.
DELIVERED APRIL 2008 · CHENGDU ELECTRONICS CUSTOMER18+ years
30 L low-temperature chamber · −75°C to +150°C · ≥2°C/min · 50,000+ accumulated hours
DELIVERED DECEMBER 2010 · CHONGQING AEROSPACE CUSTOMER16+ years
125 L dual-axis rotary chamber · −60°C to +150°C · −180° to +180° rotation · relocated and still operating
DELIVERED JANUARY 2011 · CHINA ELECTRIC POWER RESEARCH CUSTOMER15+ years
512 L rapid temperature-change chamber · −80°C to +145°C · ≥5°C/min · annual field verification passed
QUALITY ASSURANCE / 02
