“Successful device transfer! I didn’t expect that the SCICOOLING rotary table incubator has been used for 14 years, working over 10 hours a day on average, and the temperature field indicators remain so precise.”
Recently, the SCICOOLING after-sales service team visited a company in Chongqing for aerospace systems to assist with the relocation of laboratory equipment. The laboratory technicians highly praised the quality of the SCICOOLING test chamber.

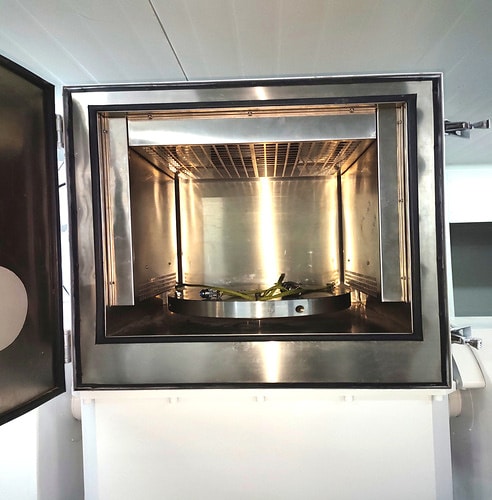

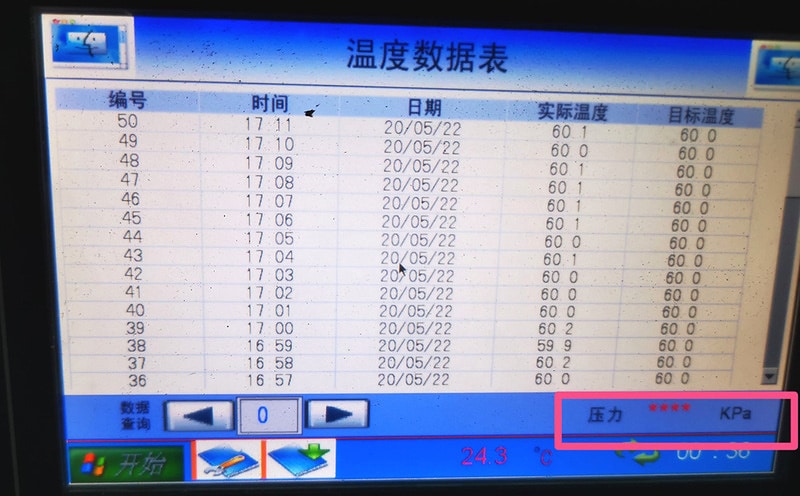

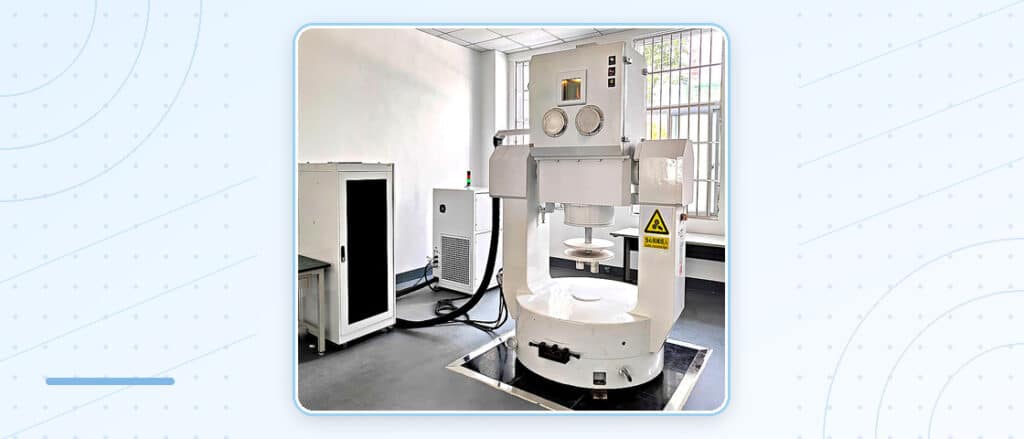

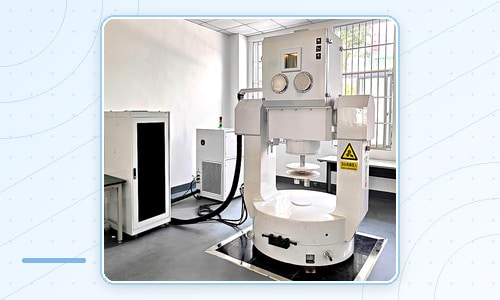

It is reported that this dual-axis turntable with a temperature test chamber was put into operation in 2010 and has been in service for 14 years, with a cumulative usage time exceeding 50,000 hours. During this period, apart from routine parts maintenance and replacement, other quality issues have rarely occurred. All indicators are inspected annually according to the originally designed standards. The test chamber has an inner chamber volume of 125L, a temperature control range of -60°C~150°C, and a cooling rate of ≥2°C/min; The test chamber has a unique structure, with doors opening front and back, observation windows on the doors, and two 160mm diameter arm operation holes installed, meeting customers’ testing needs for various samples. This test chamber has a trouble-free operating time, which is rare in the industry.
It is worth noting that this equipment uses SCICOOLING’s innovative refrigeration technology, with a minimum test temperature of -60°C, yet the refrigeration system requires only one compressor. The refrigeration system has a simple structure, good stability, and an operating power of ≯6Kw. Compared to traditional multi-stage stacked refrigeration technology, it greatly reduces operating energy consumption, saves floor space, and reduces solder joints and components, resulting in greater stability.
In addition to its unique refrigeration technology, SCICOOLING strictly controls quality, from initial design and raw material procurement to the specific production process—including welding, assembly, refrigeration, electrical control, commissioning, and inspection—with every step of the control process. It has established rigorous process procedures, refined management systems, and comprehensive inspection and testing methods, while also managing suppliers and partners to ensure quality before and after the delivery of environmental test equipment. As early as 2010, SCICOOLING successively passed ISO 9001 Quality Management System certification, ISO 14001 Environmental Management System certification, ISO45001 Occupational Health and Safety Management System certification, and GJB 9001 specialized systems Equipment Quality Management System certification.

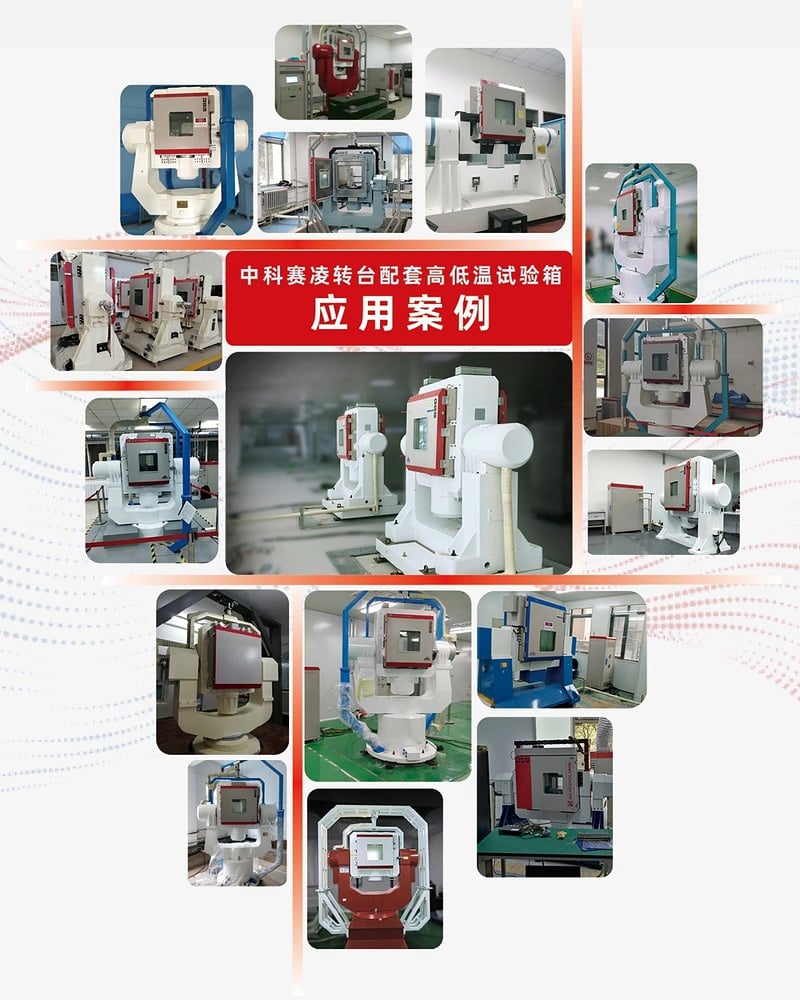

After years of market development, SCICOOLING maintains close cooperation with mainstream domestic turntable manufacturers, with over 400 turntable test chambers covering most domestic aerospace and high-reliability enterprises. The reliability and technological advancement of its products have been recognized by many high-quality customers. Rotary table temperature range for the temperature chamber: 150 ~ -75°C (expandable), heating speed ≥ 2~5°C/min (expandable), rotation angle range (outer ring ±90° / ± 180° / continuous rotation), inner chamber volume from 60L to 1000L, and can be customized according to special customer requirements.
