Among the many environmental reliability test chambers, there is no doubt that the technical difficulty of the combined environmental test chamber is among the highest. The three comprehensive factors generally refer to temperature + humidity + vibration, which have complex structures and multiple testing scenarios. Achieving test indicators requires many considerations, and non-standard customization places certain demands on manufacturers’ manufacturing capabilities, equipment upgrades, and R&D capabilities, which ordinary small factories cannot undertake.
As an expert in environmental test equipment in China, SCICOOLING has focused on environmental reliability testing equipment for 19 years. The company has developed and produced ten major categories of equipment, including nearly a hundred units in the combined environmental test chamber project. Many devices are used in aerospace, high-reliability equipment, third-party testing, new energy, and electronic communications, earning recognition and praise from many users.

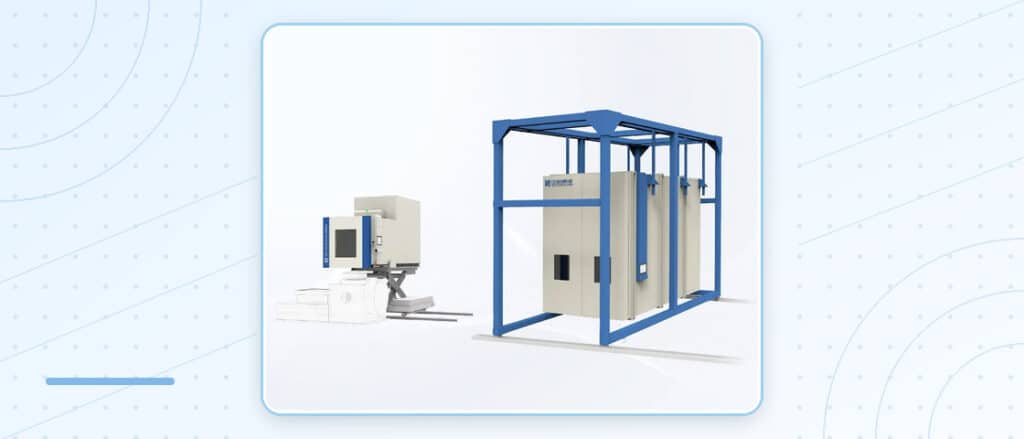

SCICOOLING combined environmental test chamber
Main technical specifications and product features
01 Key technical specifications
- Nominal Capacity: 500~1000L (Other non-standard sizes can be customized according to customer requirements)
- Temperature range: -30°C/-40°C/-60°C/-70°C~+150°C
- Cooling rate: 2~15°C/min
- Humidity range: 10%~98% RH
- Compatible with various vibration tables
02 Main product features
- Tailor-made: Designed according to the customer’s specific requirements, such as volume, on-site installation environment, vibration, and sample fixing requirements
- Extensive experience in working with vibration tables: including movement and connection methods (lifting/panning slides)
- Wide temperature and humidity range: can achieve a humidity range of 10%~98% RH and a temperature range of -70~+180°C
- Intelligent temperature control: Cooling without heating, heating without cooling, high efficiency and low energy consumption
- Intelligent protection: Intelligently provides cooling, heating, dehumidification, and humidification capacity to protect the core refrigeration components of the equipment, ensuring they operate under comfortable rated conditions, ensuring stable product quality and long service life.

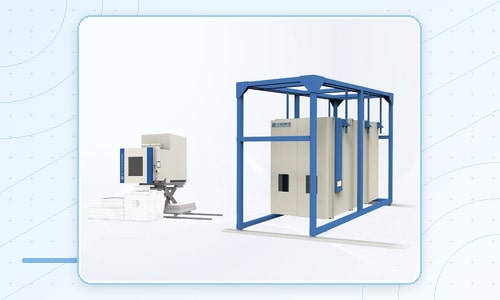

SCICOOLING combined environmental test chamber
Some cases

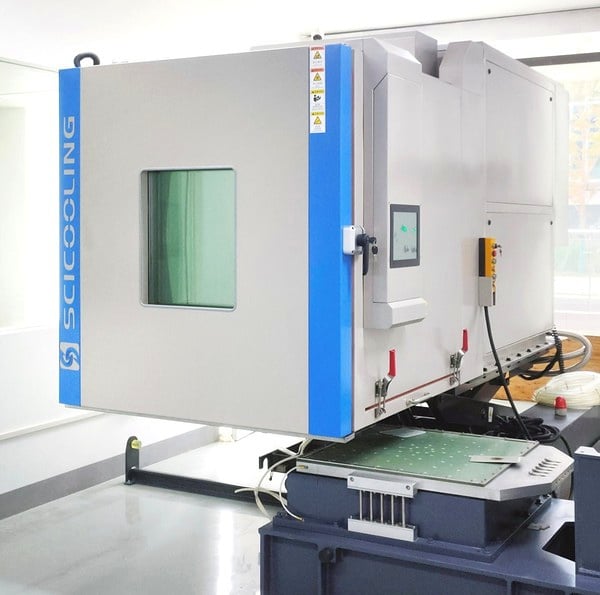

- Temperature-humidity vibration (rapid temperature change) combined environmental test chamber 1.45m³ – Shanghai
- Main use: Environmental reliability testing of electronic and electrical products.
- Main Technical Parameters:
> Nominal Volume: 1450L
> Temperature range: -70°C~+150°C
> Temperature variation rate: ≥5°C/min
> Humidity range: 10%~98% RH
> Vibration table: Suzhou Dongling vibration

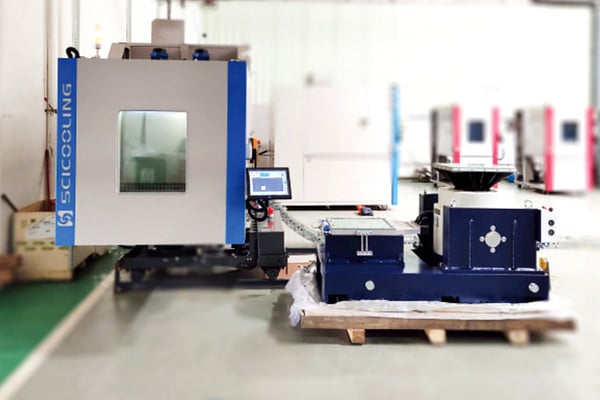

- Temperature-humidity vibration (rapid temperature change) combined environmental test chamber 1m³ – Jiangsu
- Main uses: third-party testing institutions, testing photovoltaic solar thermal, energy storage systems, electric vehicle charging stations, and other products.
- Main Technical Parameters:
> Nominal Volume: 1000L
> Temperature range: -70°C~+150°C
> Temperature variation rate: ≥10°C/min
> Humidity range: 10%~98% RH
> Vibration Platform: Aerospace Hill

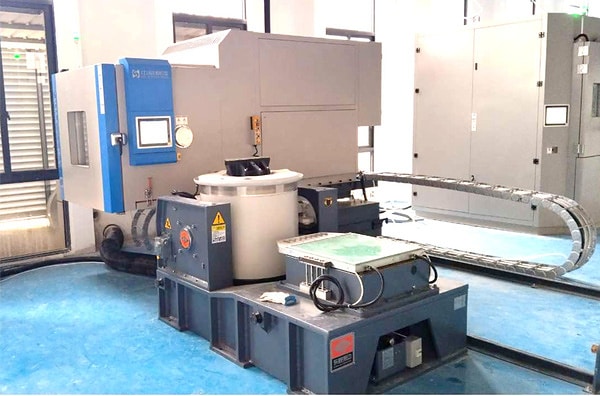

- Temperature-Humidity Vibration (Rapid Temperature Change) Combined Environmental Test Chamber 1m³ – Jiangsu
- Main uses: Third-party testing agencies, environmental reliability testing of automotive electronic components and systems.
- Main Technical Parameters:
> Nominal Volume: 1000L
> Temperature range: -70°C~+180°C
> Temperature variation rate: ≥5°C/min
> Humidity range: 10%~98% RH
> Vibration table: Suzhou Dongling vibration

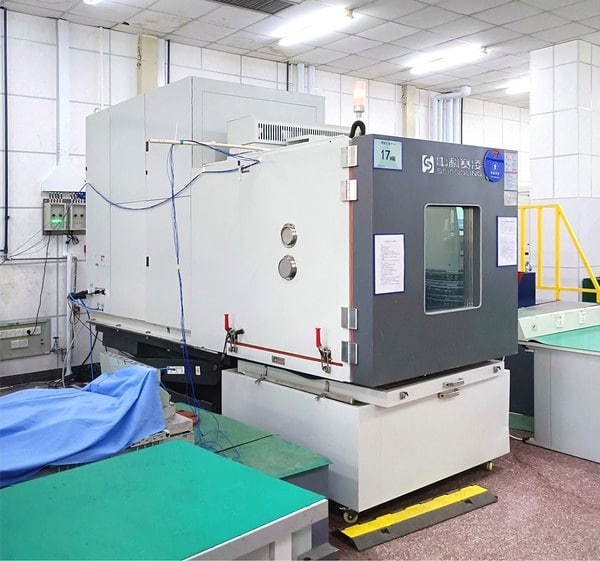

- Temperature-Humidity Vibration (Fast Temperature Variation) Combined Environmental Test Chamber 1m³ – Beijing
- Main uses: Third-party testing agencies, environmental reliability testing of automotive electronic components and systems.
- Main Technical Parameters:
> Nominal Volume: 1000L
> Temperature range: -70°C~+180°C
> Temperature variation rate: ≥5°C/min
> Humidity range: 10%~98% RH
> Vibration table: Suzhou Dongling vibration
It was early autumn, the heat had not yet subsided, and equipment production, installation, and commissioning were still very demanding. If you have orders, please send them to us. Don’t let your competitors get tired. At SCICOOLING, we are not afraid of hard work and respond quickly, only willing to provide you with better products and more professional services
