Product Features
Complete integration: extensive environmental-test integration experience and strong technical-team support.
Compact and lightweight: space-saving structure, low equipment weight and excellent energy efficiency.
Low noise and vibration: dedicated noise- and vibration-reduction treatment.
Excellent performance: meets or exceeds applicable Chinese national standards and test procedures.
Custom engineering: professional support for non-standard requirements.
Multiple interfaces and drivers for secondary development.
Applicable Standards
GB/T 10589-2008 — Technical requirements for low-temperature test chambers
GB/T 10592-2008 — Technical requirements for high- and low-temperature test chambers
GJB 360B-2009 — Test methods for electronic and electrical components
JJF 1101-2019 — Calibration specification for temperature and humidity parameters of environmental testing equipment
GB/T 5170.2-2017 — Inspection methods for environmental testing equipment for electrical and electronic products: temperature test equipment
JJG 117-2013 — Verification regulation for surface plates

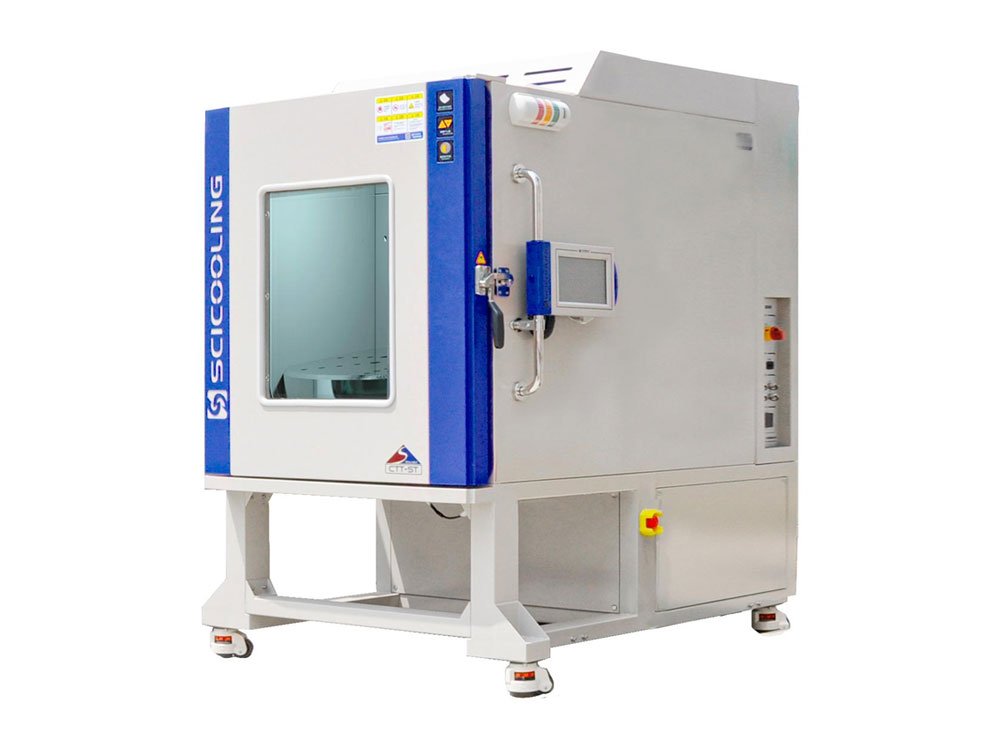

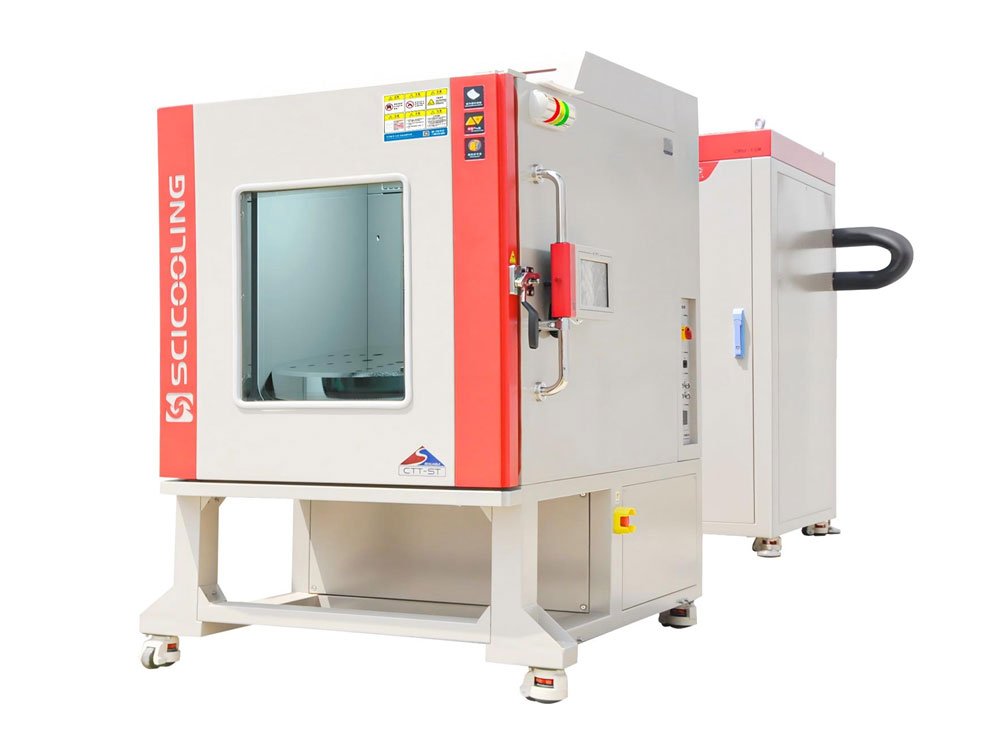

| Model (Vibration-Isolation Platform Chamber) | CTE-ST7506 | CTE-ST7512 | CTE-ST7525 | CTE-ST7550 | CTE-ST75100 | |
| Nominal Volume | L | 60 | 125 | 250 | 500 | 1000 |
| Interior Dimensions | W×H×D（mm） | 450×370×370 | 475×560×475 | 600×700×600 | 750×900×750 | 950×1150×950 |
| Exterior Dimensions | W×H×D（mm） | 650×1300×1150 | 675×1500×1250 | 800×1650×1350 | 950×1750×1650 | 1150×2000×2000 |
| Temperature Range | ℃ | -75°C to +150°C (customizable) | ||||
| Temperature Performance | ℃ | Fluctuation: ±0.5°C; uniformity: 2.0°C (no-load test with platform installed, within the effective uniform zone); temperature deviation: ±2.0°C | ||||
| Heating / Cooling Rate | ℃/min | -02: ≥2.0°C/min; -05: ≥5.0°C/min (no-load test with platform installed; test range +85°C to -55°C) | ||||
| Operating Noise (-02 / -05) | dB(A) | 62/64 | 63/67 | 70/72 | 72/75 | 73/75 |
| Installed Power (-02 / -05) | kW | 2.5/4.0 | 5.0/7.0 | 7.0/12.0 | 8.0/12.5 | 14.5/21.0 |
| Equipment Weight | kg | 250 | 280 | 350 | 520 | 950 |
| Vibration-Isolation Platform Configuration | – | Adjustable leveling mounts + granite base + stainless steel support shafts + Grade I / II / III worktop | ||||
| Turntable Diameter | mm | ≤Φ300 | ≤Φ400 | ≤Φ500 | ≤Φ650 | ≤Φ850 |
| Power Supply | – | 380 V ±10% AC, 50 Hz, 3L + N + PE; dedicated supply with separate circuit breaker and reliable grounding | ||||
| Granite Base Dimensions W × H × D | mm | 250×450×250 | 300×510×300 | 350×500×350 | 380×555×380 | 500×545×500 |
| Granite Base Weight | kg | 76 | 124 | 165 | 217 | 368 |
| Configuration — Observation Window | mm | W260×H260 | W315×H315 | W345×H435 | W440×H600 | W440×H600 |
| Configuration — Cable Ports | – | One cable port on each side of the chamber, supplied with two silicone plugs | ||||
| Configuration — Controller | – | High-brightness Chinese-language touchscreen with imported programmable controller | ||||
| Main Materials | Main Components | Refrigeration and Control |
| Interior: SUS304 stainless steel Exterior: cold-rolled steel with electrostatic powder coating Insulation: ultra-fine glass wool + polyurethane foam Sealing: imported high-/low-temperature-resistant silicone gasket |
Compressor: imported compressor Refrigeration components: Danfoss, Emerson, Castel and Saginomiya Controller: programmable controller Circulation fan: high-reliability low-noise motor with stainless steel impeller |
Refrigeration system: single-compressor refrigeration system (SMRC) Communication interfaces: RS232 and USB data interface Operating modes: constant-value and program operation Program capacity: 10 programs, up to 100 steps per program |
| Notes: 1. Temperature-performance parameters are tested at 25°C ambient temperature and 20°C cooling-water temperature in accordance with GB/T 5170-2017. 2. Values shown are for standard models. Contact a sales representative for requirements outside the listed range or for technical details not stated here. 3. Values are for reference only and do not constitute final delivery criteria. Specifications may change without notice as products evolve; refer to the latest catalogue or approved technical agreement. |
||
| Accuracy Grade | Grade I | Grade II | Grade III | |
| Worktop Material | – | 1Cr18Ni9Ti | 304 Stainless Steel | 2cr13 |
| Worktop Construction | – | Precision-ground from a solid billet | Premium steel outer frame with honeycomb vibration-damping core; composite precision-ground surface | Premium steel outer frame with honeycomb vibration-damping core; composite precision-ground surface |
| Worktop Flatness | mm/m² | ≯0.02 | ≯0.05 | ≯0.05 |
| Platform Levelness | mm/m | ≯0.02 | ≯0.05 | ≯0.05 |
| Temperature Resistance (Flatness Unaffected) | ℃ | -75℃—150℃ | -55℃—100℃ | -55℃—100℃ |
| Worktop Magnetic Leakage | GS | ≯1 | ≯1 | ≯10 |
| Optional Worktop Sizes | – | R100, R200, R300, R2400, R500, R600, R700, R800 and other circular worktops | 200 × 200, 300 × 300, 400 × 400, 500 × 500, 600 × 600, 700 × 700, 800 × 800 mm and other custom sizes | 200 × 200, 300 × 300, 400 × 400, 500 × 500, 600 × 600, 700 × 700, 800 × 800 mm and other custom sizes |
| Safety Measures | Site Requirements | Optional Configurations |
| Electrical protection: leakage-current and overload protection Refrigeration system: overpressure, overtemperature/overload protection and refrigerant-leak alarm Air-circulation system: fan overtemperature/overload and heater overtemperature protection Specimen protection: multiple overtemperature protections, program-operation protection and temperature pre-alarm |
Ambient temperature: 5°C to 30°C; relative humidity: ≤85% RH No severe vibration or electromagnetic radiation; no dust or corrosive substances nearby Maintain 1 m clearance from surrounding enclosed surfaces and provide good ventilation Water-cooled models (W): water temperature ≤30°C, pressure 0.3 to 0.5 MPa, industrial-quality water |
Remote-control software Dry-air purge system Movable temperature sensor Third-party test report |
| “Notes: 1. Install the vibration-isolation platform on an independent isolated foundation; otherwise isolation performance may be reduced. 2. If the product remains in one position for an extended period, use a level to readjust the worktop. 3. Do not clean the worktop with acidic liquids, which may damage its surface quality.” |
||
