high-reliability Selection: An Ultimate Test of Reliability
On December 1st, Beijing’s weather forecast predicted a cold wave with a low of -7°C. As people hurriedly wrap up their down jackets and walk the streets, a special group of “warriors” silently endure trials a hundred times harsher than this—from extreme cold to scorching heat, from low-pressure plateaus to humid and hot environments. Last week, the large-scale walk-in high and low temperature and humidity test chambers and high and low temperature altitude test chambers, custom-made by SCICOOLING for a high-reliability industrial unit in Beijing, officially passed customer acceptance! This is not only the delivery of two “giant” devices but also a solid showcase of China’s high-end environmental testing equipment capabilities.

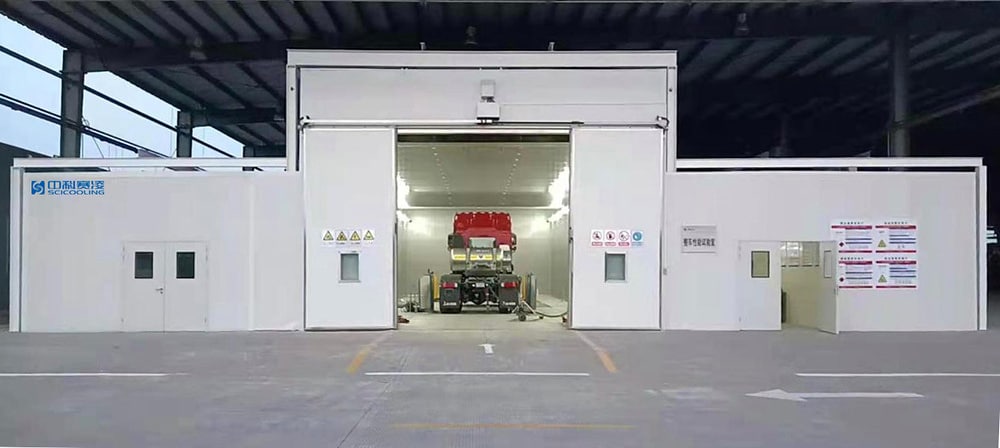

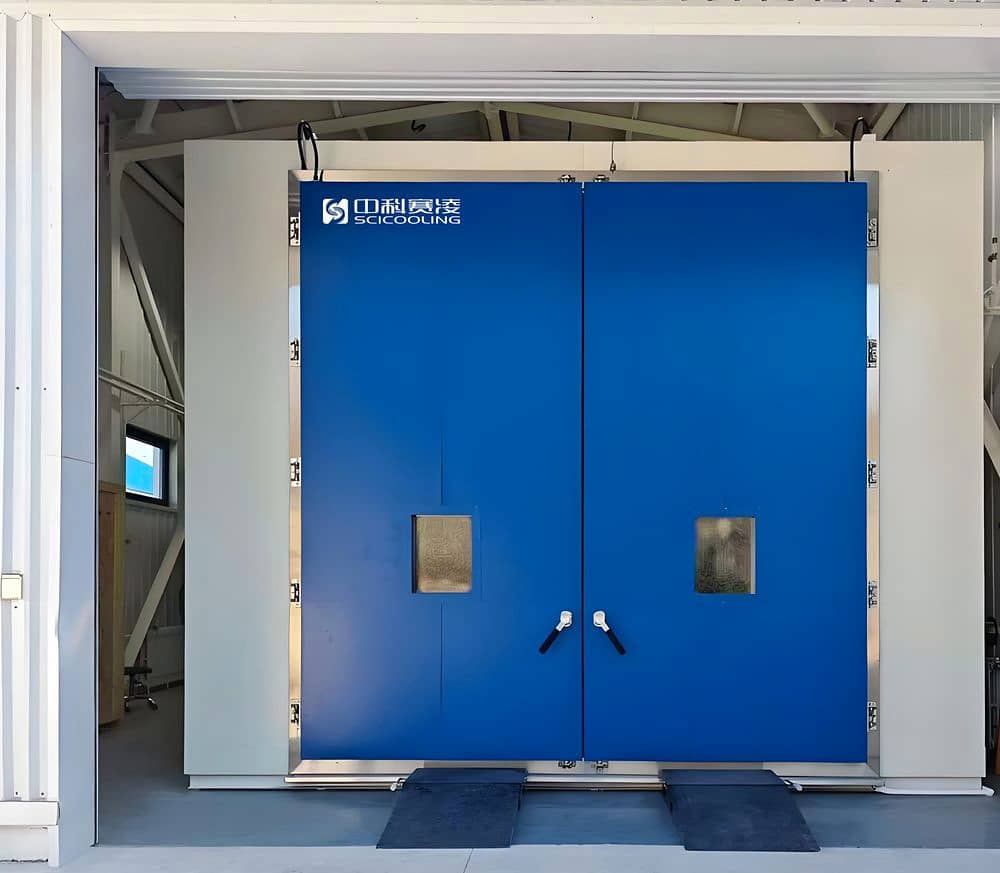

160m³ large walk-in temperature and humidity test chamber: specially designed for full vehicle testing. Interior box volume: ≥160m³, paired with a 3.5-meter-high door, easily accommodating a large 5T special vehicle and core components. Temperature range: -60°C~100°C, simulating extreme climates from the Arctic to the equator. Heating rate: ≥1°C/min (under load), verifying the equipment’s strong performance under real load. Humidity range: 20%RH~98%RH (temperature: 20~80°C). Base plate load-bearing capacity: ≥1500kg/m2 (uniform load).

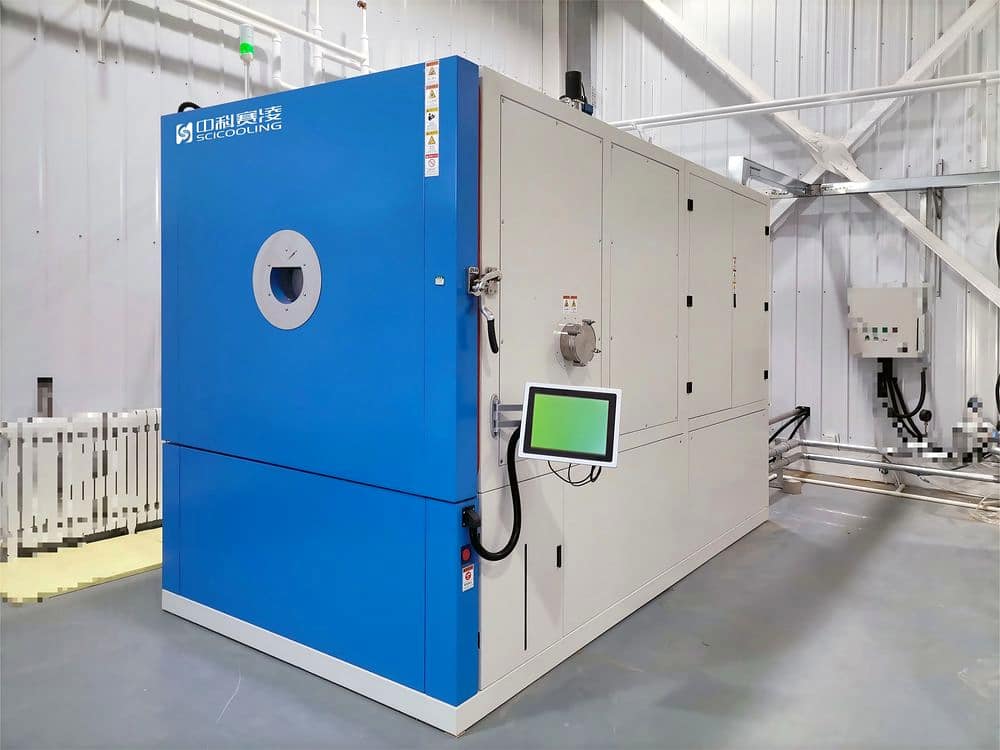

2m³ walk-in altitude test chamber: Temperature + humidity + low pressure integrated simulation. test space volume: ≥2m³. Temperature range: -70°C~130°C, heating rate: ≥2°C/min (full load) Humidity range: 20%RH~98%RH (temperature: 20~80°C) Pressure range: atmospheric pressure~4.0kPa; Rapid Voltage Reduction: ≤15 seconds (75.2kPa~44.0kPa)

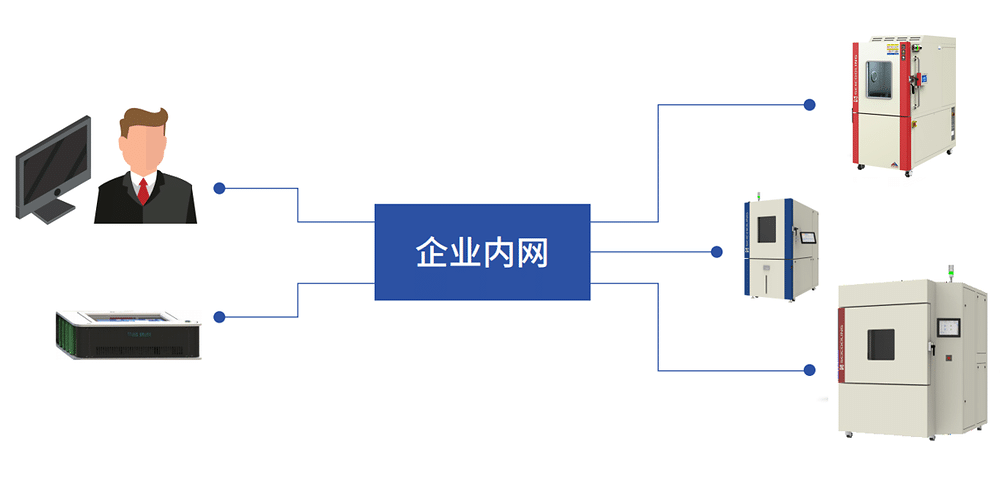

Customized details forge reliable quality. Beyond core parameters, many other details together build the device’s reliability: u Smart Eye: Equipped with three million-pixel high-definition cameras, supporting remote focus and direction, making the testing process clear and real-time monitoring. u Smart Brain: Features on-site and remote display control capabilities, with remote control providing secondary software development functions. u Quality Support: All components are made from well-known domestic brands to ensure long-term, efficient, and stable operation of the equipment.
Why choose SCICOOLING? This project is open tender, and as a high-reliability confidential unit, the client has almost stringent requirements for equipment quality. This successful delivery once again confirms SCICOOLING’s technical expertise and professional capabilities in the field of large-scale non-standard environmental test equipment: u Non-standard customization: This project is fully integrated in design and delivery based on the client’s unique test subjects, strict testing standards, and site conditions. u System Integration: We provide not only two pieces of equipment but also the overall installation and service of water purification and cooling water systems, covering everything from project design and manufacturing to installation and commissioning, achieving a “turnkey” project. u Case Experience: Years of deep cultivation, successfully providing large-scale testing equipment for numerous aerospace, high-reliability equipment, research institutes, and other organizations, accumulating extensive mature experience in handling large sizes, heavy loads, high heat generation, high precision, and complex non-standard processing.
From the surface to the sky, from extreme cold to scorching heat. SCICOOLING uses precise “environmental reproduction” technology to safeguard the reliability of major national equipment. Every piece of equipment that withstands our equipment will face any extreme challenge on the real “battlefield.”
